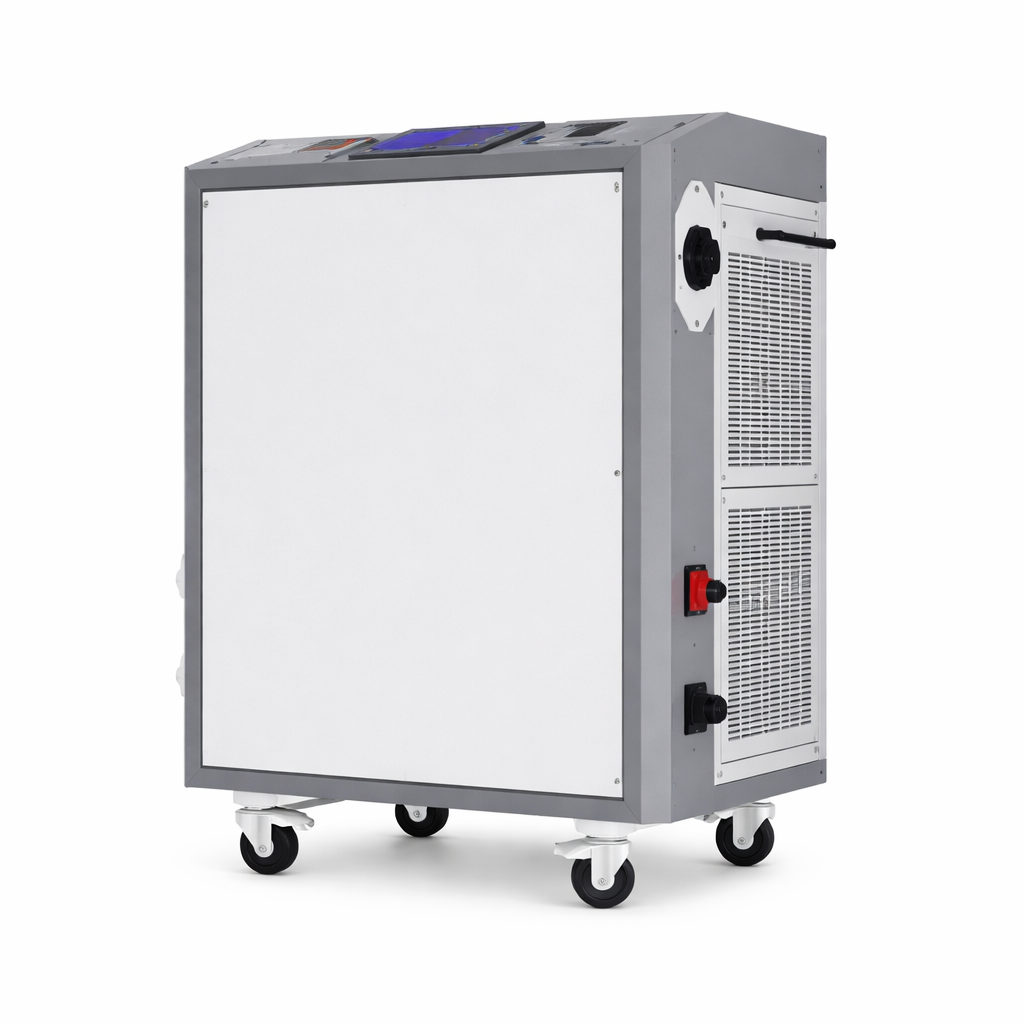

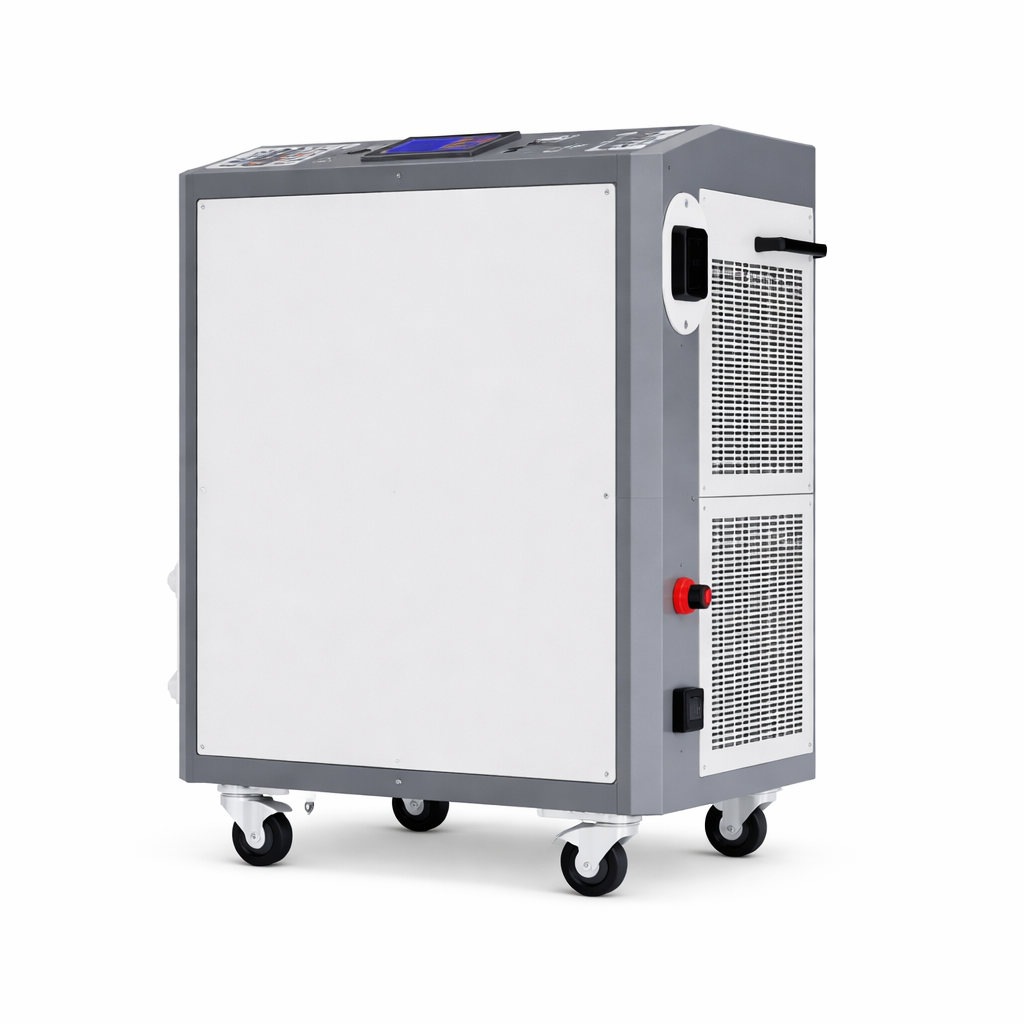

IonForge M150 Mobile Battery Simulator

The IonForge M150 Mobile Battery Simulator is built for high-power validation in R&D labs, EV service bays, and production environments that need a battery source you can roll right up to the test stand. This industrial, cart-mounted simulator delivers stable programmable DC with rapid load-step handling, making it ideal for inverter checks, charger qualification, DC bus testing, and system bring-up. With a clean front face, high-efficiency cooling, and robust connectors, it’s a premium workhorse designed to keep demanding workflows moving.

Specifications

Material: Powder-coated steel frame with reinforced aluminum panels and industrial casters
Dimensions: 680 mm (L) x 520 mm (W) x 820 mm (H)
Performance: 0–150 V, 0–60 A, up to 6,000 W, <2 ms transient response
Interfaces: LAN (SCPI), USB, and analog control I/O
Output Terminals: High-current quick-connect posts with remote sense and safety interlock

Features

Mobile High-Power Test Platform: Industrial rolling chassis brings stable battery emulation directly to the DUT
Programmable Battery Profiles: Emulates Li-ion, LiFePO4, lead-acid, and custom curves with adjustable internal resistance
Rapid Load-Step Stability: Maintains output integrity during pulsed loads, charger handshake events, and inverter startup
Full Protection Suite: OVP/OCP/OTP, soft-start, arc detection logic, and programmable safety limits

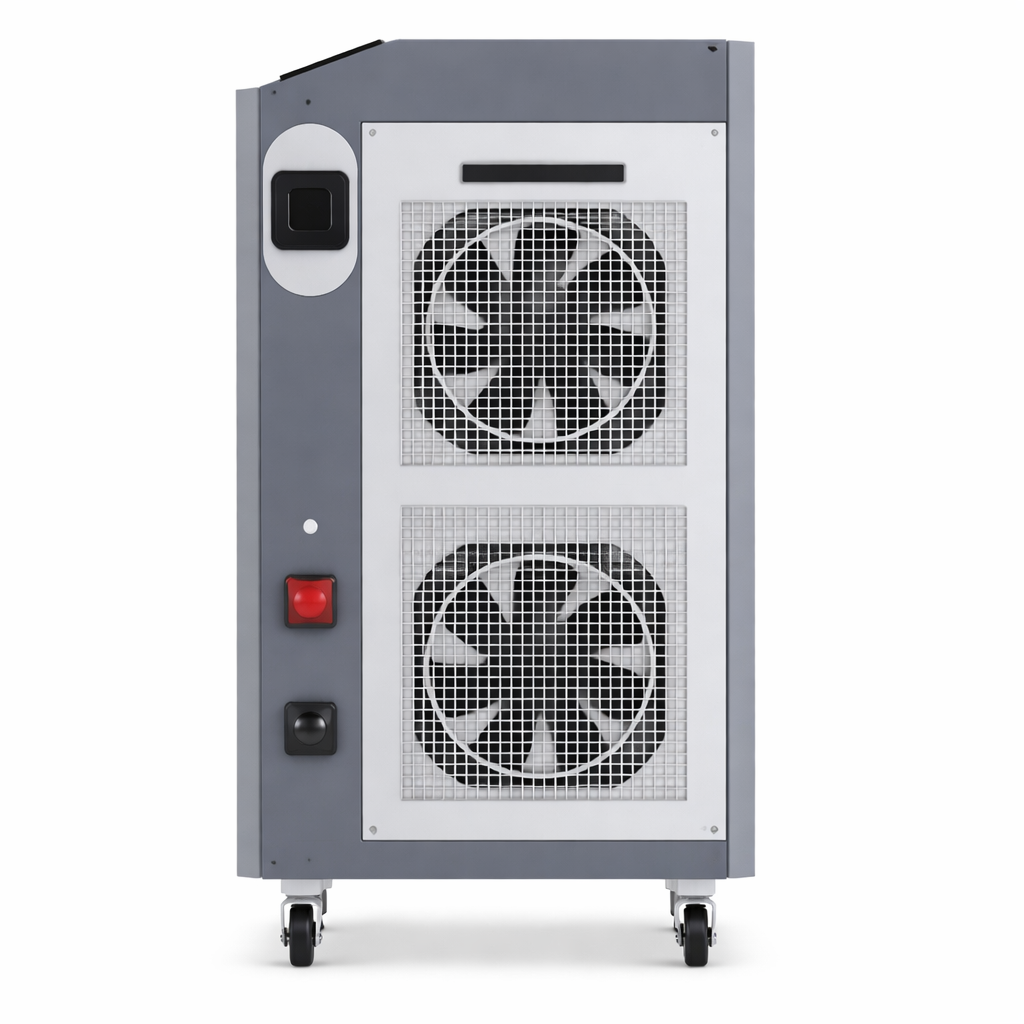

High-Efficiency Cooling: Ducted airflow design keeps acoustics low while sustaining continuous output
Automation-Ready Control: SCPI command set enables repeatable production tests and scripted validation

Maintenance

Daily: Inspect output connectors and confirm casters lock securely before operation
Weekly: Clean intake vents and verify fan operation to maintain cooling performance
Annually: Perform calibration verification and inspect power terminals and safety interlock function

Warranty

Power Stage & Control Electronics: 3 years
Chassis, Casters & Cooling System: 2 years
